The Rocker Repair Kit™
The permanent fix for broken window rockers on International trucks. Replaces both driver and passenger window toggles with a full-width continuous steel axle—preventing recurring plastic pivot breakage.
Engineered as a direct drop-in replacement for the entire Navistar / International door pod family across all factory revision supersessions:
To guarantee steady shop inventory without delay, orders of 40+ units can be split with an initial 10 units expedited immediately and remaining units fulfilled across a scheduled delivery window. For custom commercial fleet quotes on 50+ units, contact info@fusediagnostic.ca.
Full Module Replacement vs. Targeted Rocker Repair
Why replace an entire electronic door switch assembly when only the mechanical rocker pivot tab broke?
Complete Door Cluster Replacement
- Integrated Electronics Cost: Factory clusters are supplied as complete assemblies with internal circuit boards and wiring.
- 1–2 Hours Door Teardown: Standard replacement procedure requires removing the interior door panel, clips, and vapor barrier.
- Susceptible to Recurring CVI Failure: Because brand-new replacement clusters retain the original molded plastic pivot post, fleets often see them snap again between routine 6-month Commercial Vehicle Inspections (CVI).
- Electronic Waste: Discards a perfectly functioning electronic circuit board solely because an external plastic toggle failed.
The RockerKit™ Targeted Solution
- Continuous 304 Stainless Axle: Spreads mechanical toggle loads across all 4 polycarbonate posts, eliminating the single plastic pivot failure point permanently for CVI compliance.
- Installs in Under 5 Minutes: Snaps directly into the existing module from inside the cab—zero door panel removal and zero wiring disturbance.
- Preserves Original Electronics: Keeps the factory OEM switch electronics intact while replacing only the vulnerable physical toggle assembly.
- Volume Fleet & Shop Pricing: Economical 5-packs and 10-packs allow maintenance shops to repair window issues immediately on the spot.

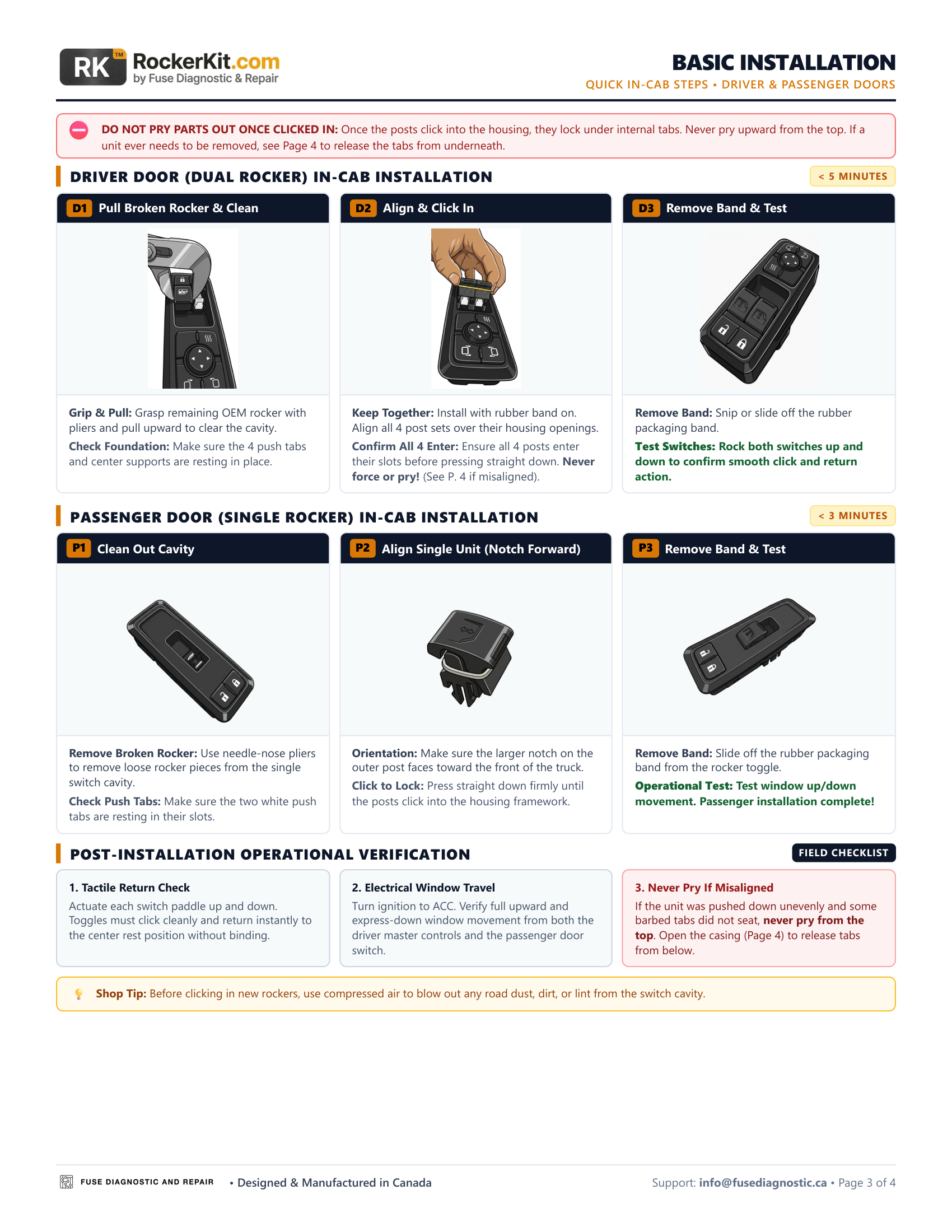

Installed in Under 5 Minutes

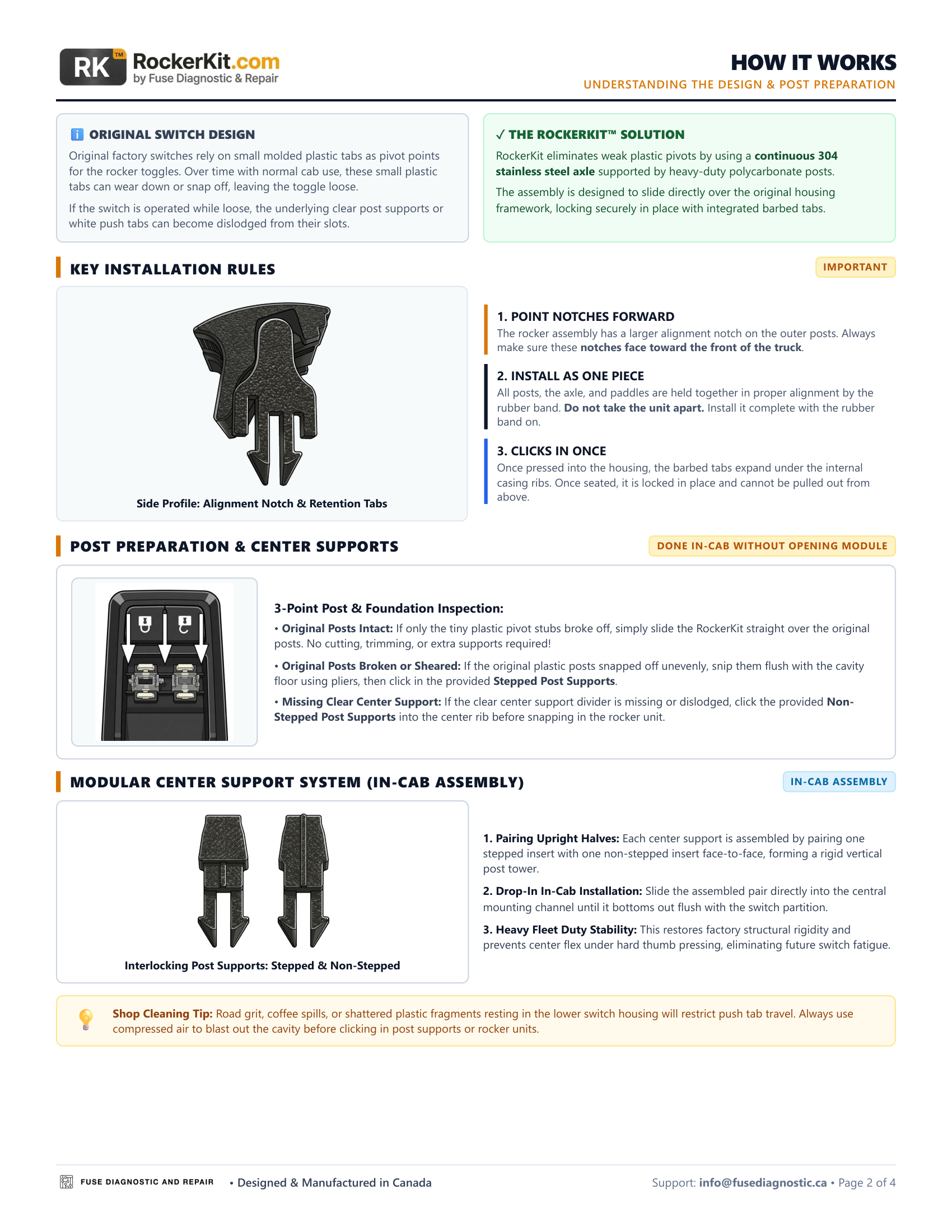

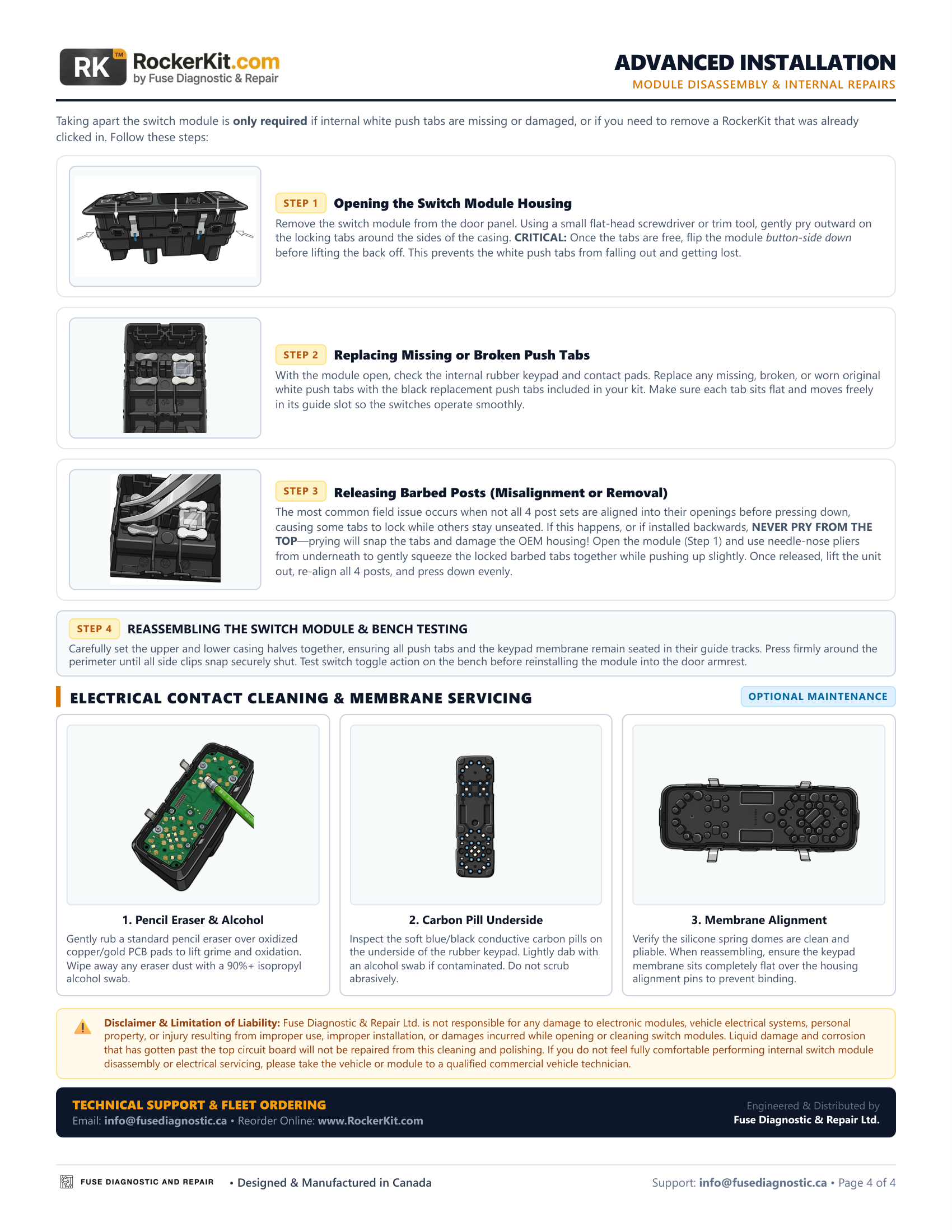

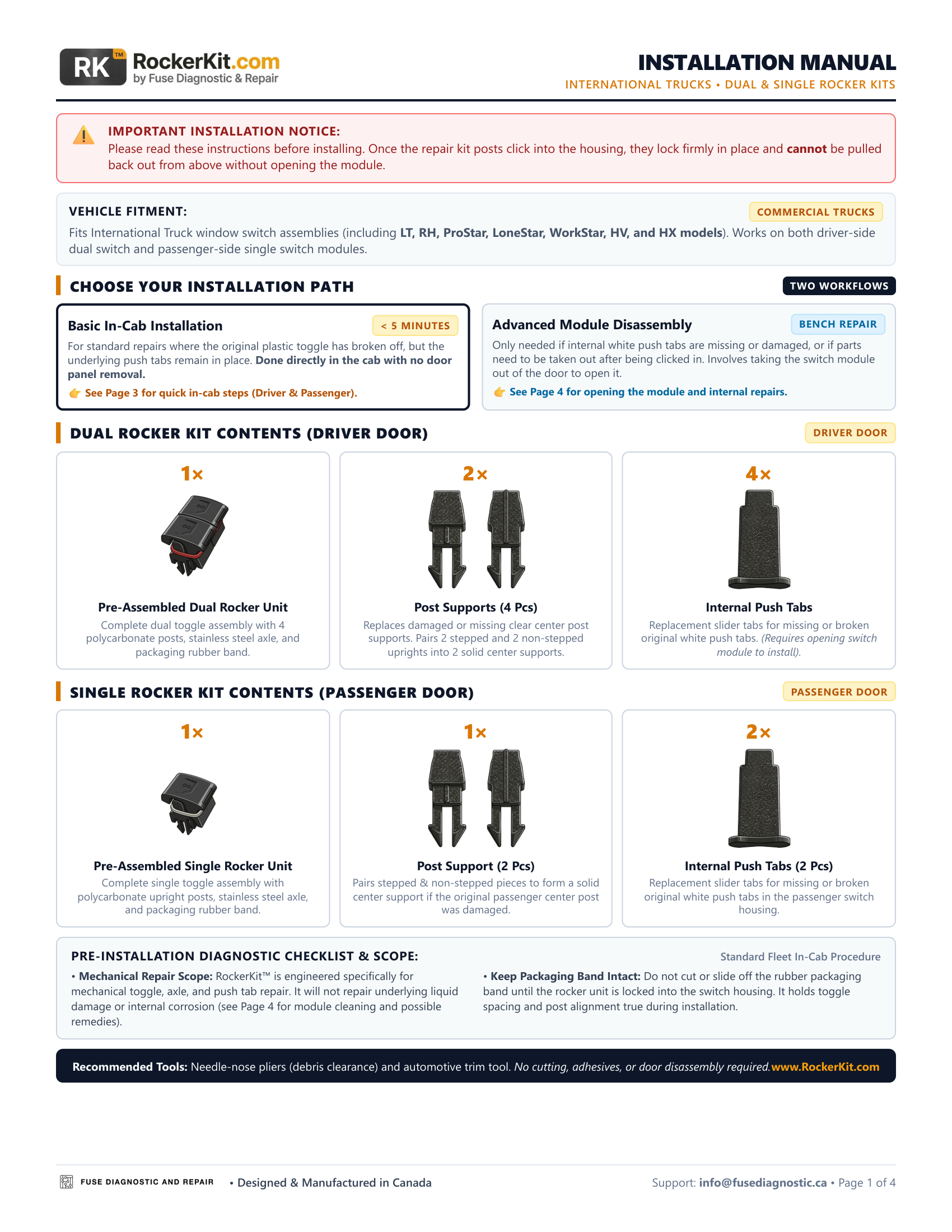

From our certified workshop installation manual.
01

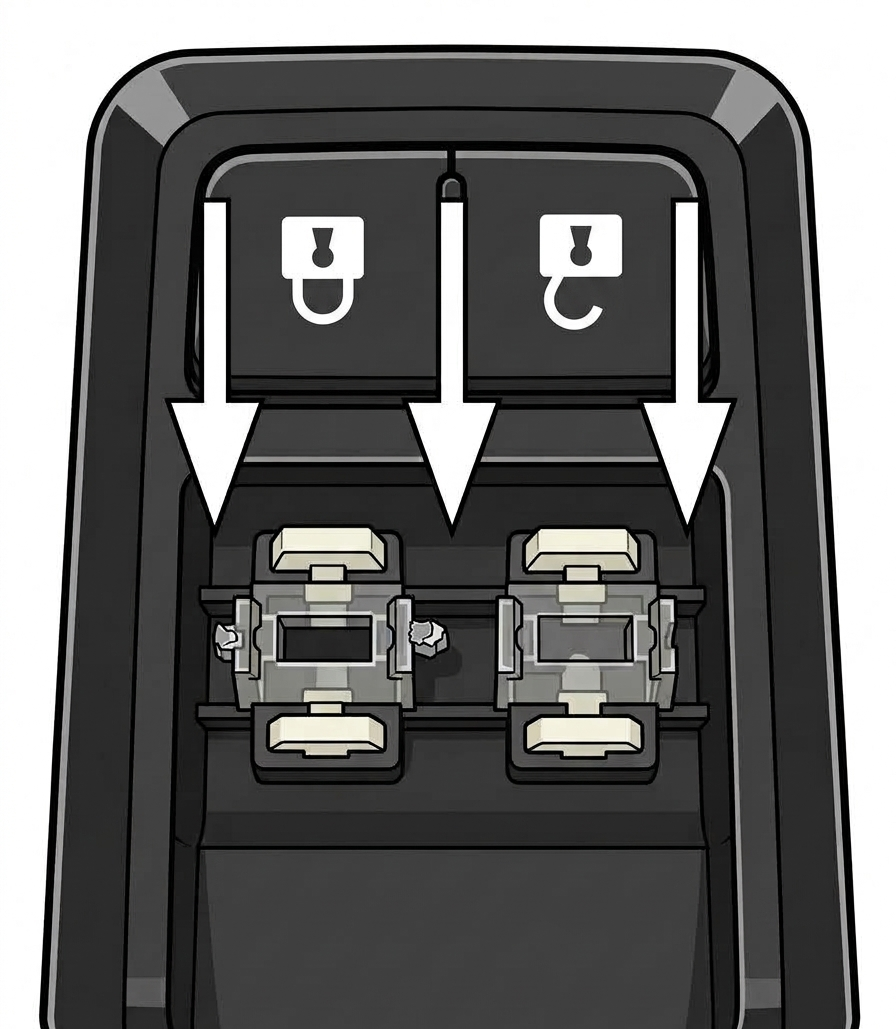

Inspect & Clear Remnants

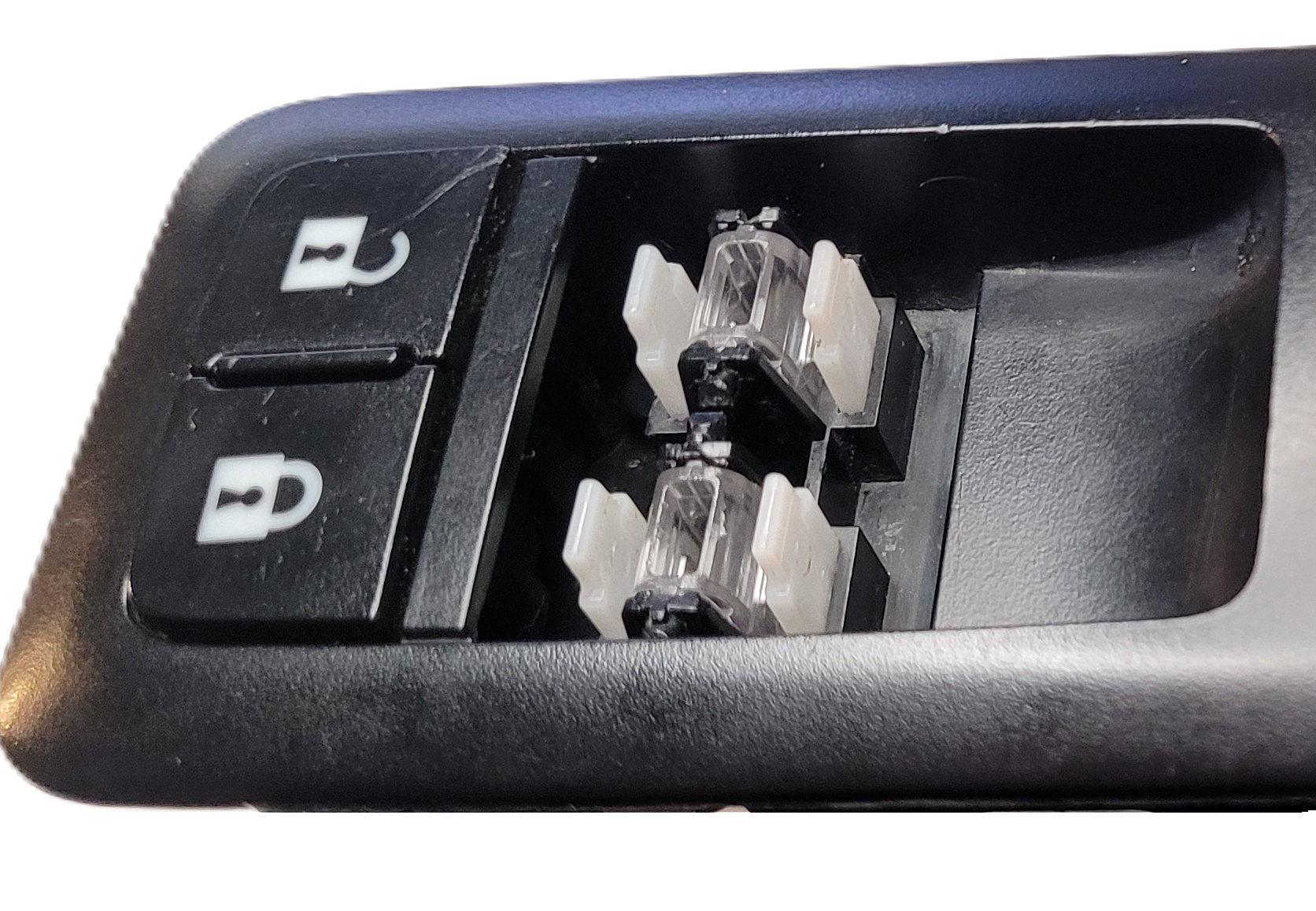

Using pliers, pull away any remnants of the broken OEM rockers. Ensure the four push tabs and central clear supports are intact.
02

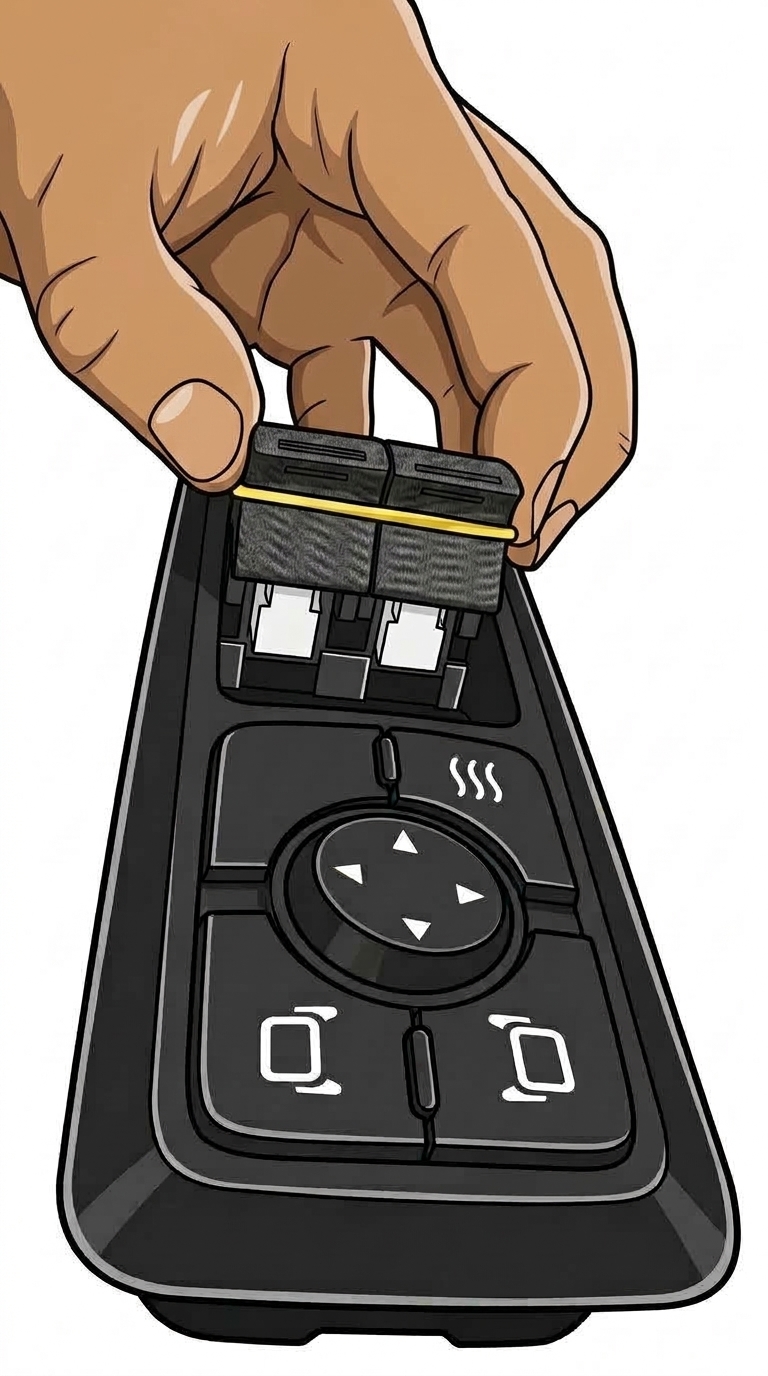

Align & Click into Place

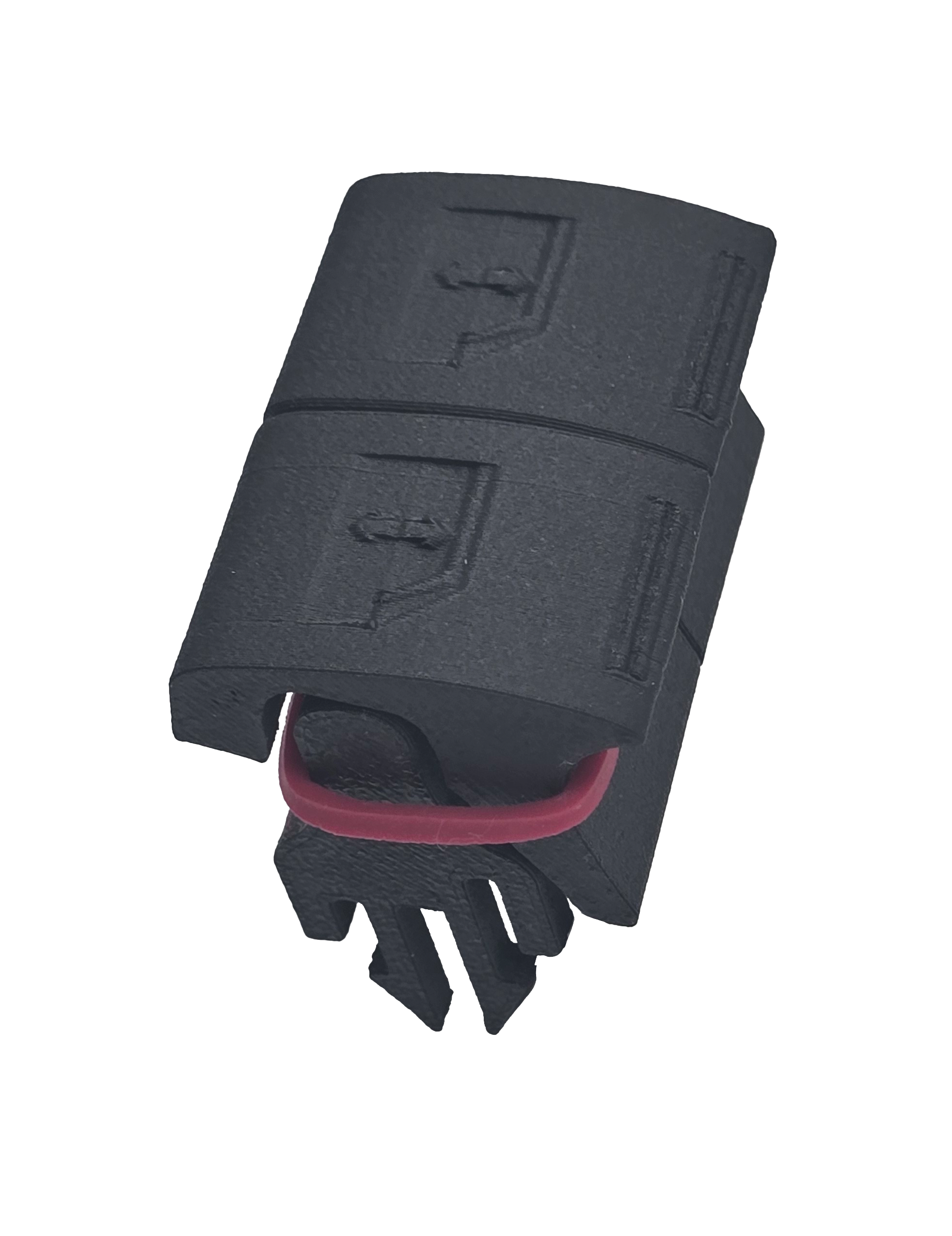

Align the white actuator sliders of the pre-assembled repair assembly with the guide slots. Press straight down firmly until it clicks into place.
03

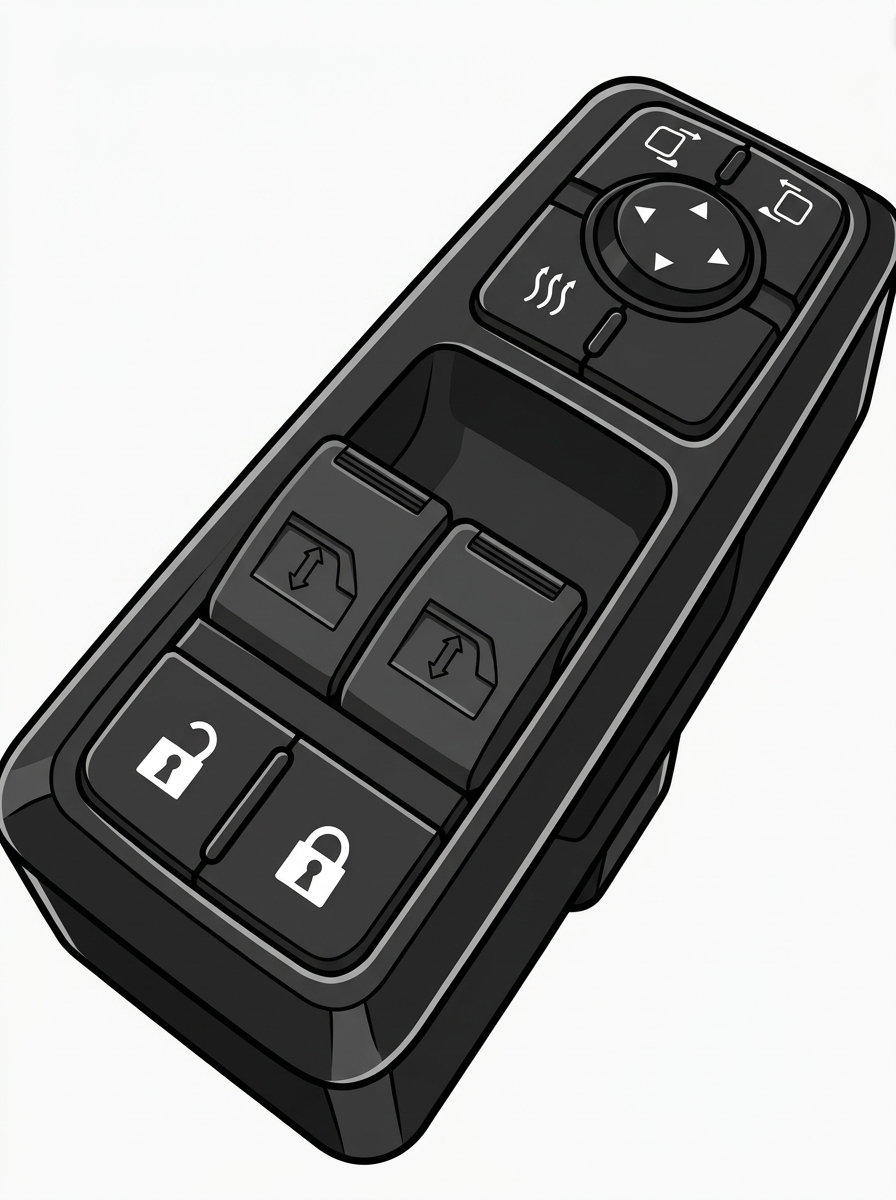

Remove Packaging Band

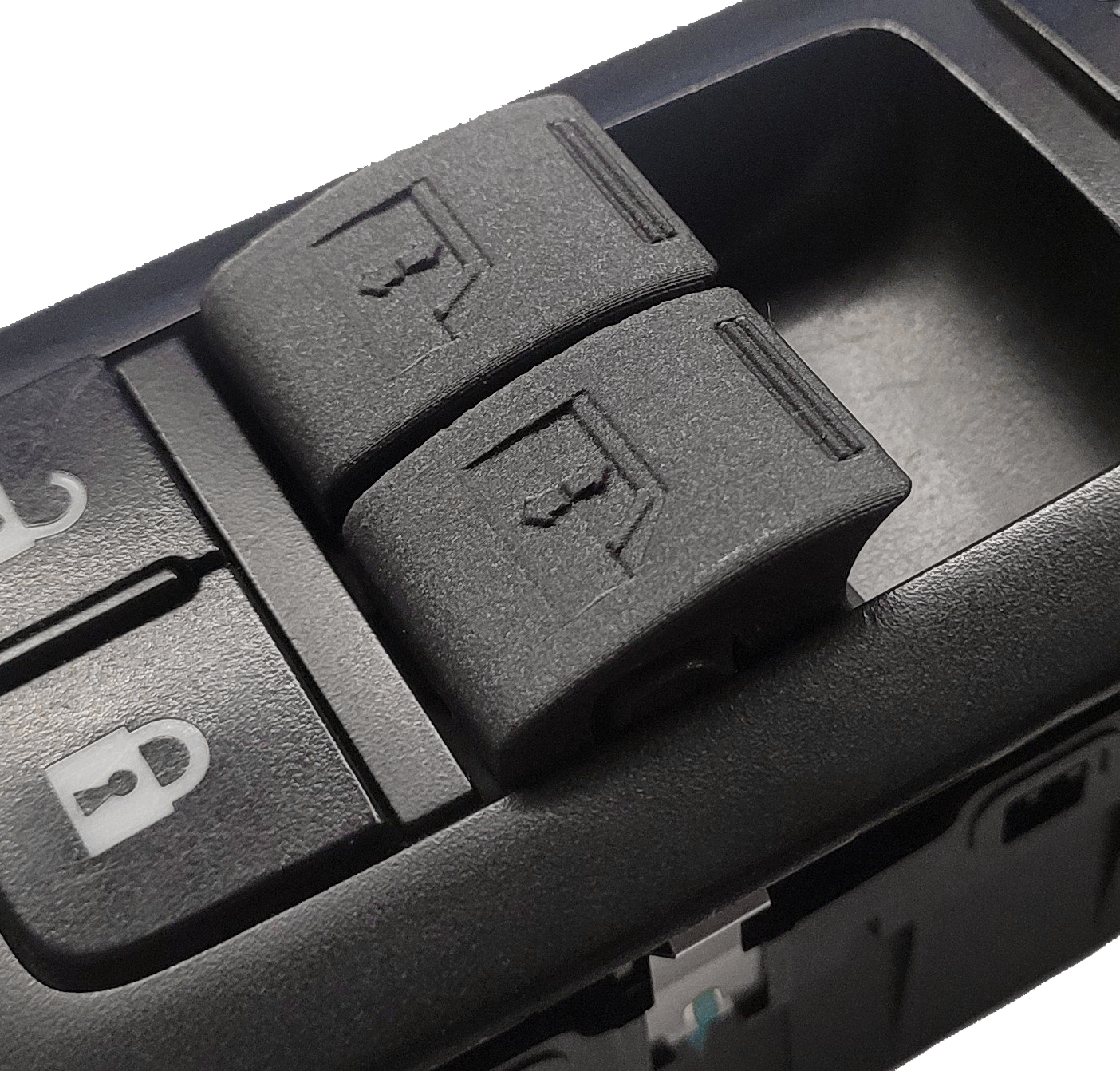

Snip off the retention band. Test both rocker toggles. Both windows are now fully operational on an unbreakable 304 continuous stainless steel axle.
Frequently Asked Questions
Everything you need to know about vehicle fitment, installation, OEM part numbers, and shipping.
Yes. RockerKit is engineered specifically for the entire Navistar 4061965C door control pod family across all factory revision supersessions: 4061965C1, 4061965C2, 4061965C3, 4061965C4, 4061965C5, 4061965C6, and 4061965C7.
While Navistar incremented the part revision number from C1 through C7, the core door pod housing and the fragile plastic pivot points remained unchanged. RockerKit fits all seven revisions without requiring a $500+ door pod replacement.
Due to rapidly shifting international trade tariffs and cross-border customs regulations, we currently do not offer direct sales and shipping outside of Canada through our standard checkout.
For our US fleet neighbors: If you have Canadian terminals, operating branches, or a Canadian freight-forwarding partner willing to accept and redirect your order, we are more than happy to fulfill your purchase! Simply provide your Canadian delivery address at checkout. If you need special cross-border fleet accommodations, please email us directly at info@fusediagnostic.ca.
While a single rocker paddle can physically push into one side of the driver door housing, we strongly recommend against it for three critical reasons:
- Structural Security: The Driver Side Dual Unit is engineered as a unified cradle that bridges and anchors across both switch bays for maximum retention. A single paddle on the driver side lacks this interlocking dual-bay stability.
- Ergonomic Mismatch: The RockerKit heavy-duty paddle sits at a slightly different height and profile compared to the OEM factory plastic rocker. Having one OEM paddle and one RockerKit paddle side-by-side feels uneven and awkward to operate.
- Imminent Adjacent Failure: From extensive field diagnostic experience, when one OEM plastic rocker fails from fatigue, the adjacent rocker has undergone the same operational stress and is usually soon to fail. Installing the dual unit permanently resolves both switches at once.
No door teardown is required. The entire installation takes approximately 5 minutes from inside the cab. You simply clear out broken OEM plastic fragments and drop the pre-assembled RockerKit unit directly into the door pod over the factory actuators. No door panel clips to break, and no wiring harnesses to disconnect.
Factory Navistar switches rely on thin injection-molded plastic pivot nubs that easily shear off under daily thumb pressure and temperature extremes. RockerKit eliminates plastic pivots entirely, using a continuous 304 stainless steel through-axle housed in high-impact industrial polycarbonate. The stainless steel axle cannot shear, crack, or bend.
We offer tailored options for single owner-operators as well as commercial fleet terminals:
- Passenger Side Single Kit: $120.00 CAD
- Driver Side Dual Kit: $200.00 CAD
- Full Cab Bundle (Both Doors): $300.00 CAD — Includes FREE Shipping across Canada!
Standard flat rate shipping across Canada is $20.00 CAD on orders under $300 CAD. Volume Shop 5-Packs and Fleet 10-Packs include automated quantity discounts and free priority shipping.
When we receive bulk orders above 40 units, depending on current demand we may contact the customer via email to coordinate fulfillment.
To ensure prompt deliveries across all your active trucks, we may batch your order—sending out an initial portion expedited right away to get down trucks operational, followed by the remaining balance shortly after. For custom volume orders of 50+ units or corporate purchase orders, please email us directly at info@fusediagnostic.ca.
Return Policy & Replacements:
- Transit Damage: If your shipment is damaged in transit, report it within 7 business days of delivery with photos of the damaged shipping packaging and product to info@fusediagnostic.ca. We will ship a free replacement immediately.
- 1-Year Warranty Replacement: If a unit fails due to manufacturing defect or natural wear within one year of purchase, email clear photos of the part to info@fusediagnostic.ca for a no-charge warranty replacement.
- Ordering Errors / Wrong Part: Because RockerKit components are precision mechanical repair hardware, returns are not accepted for ordering the wrong product. Please review our vehicle fitment guide (Driver Dual Part # F0001 vs. Passenger Single Part # F0001S) before completing checkout.
